Graco Switch Tip

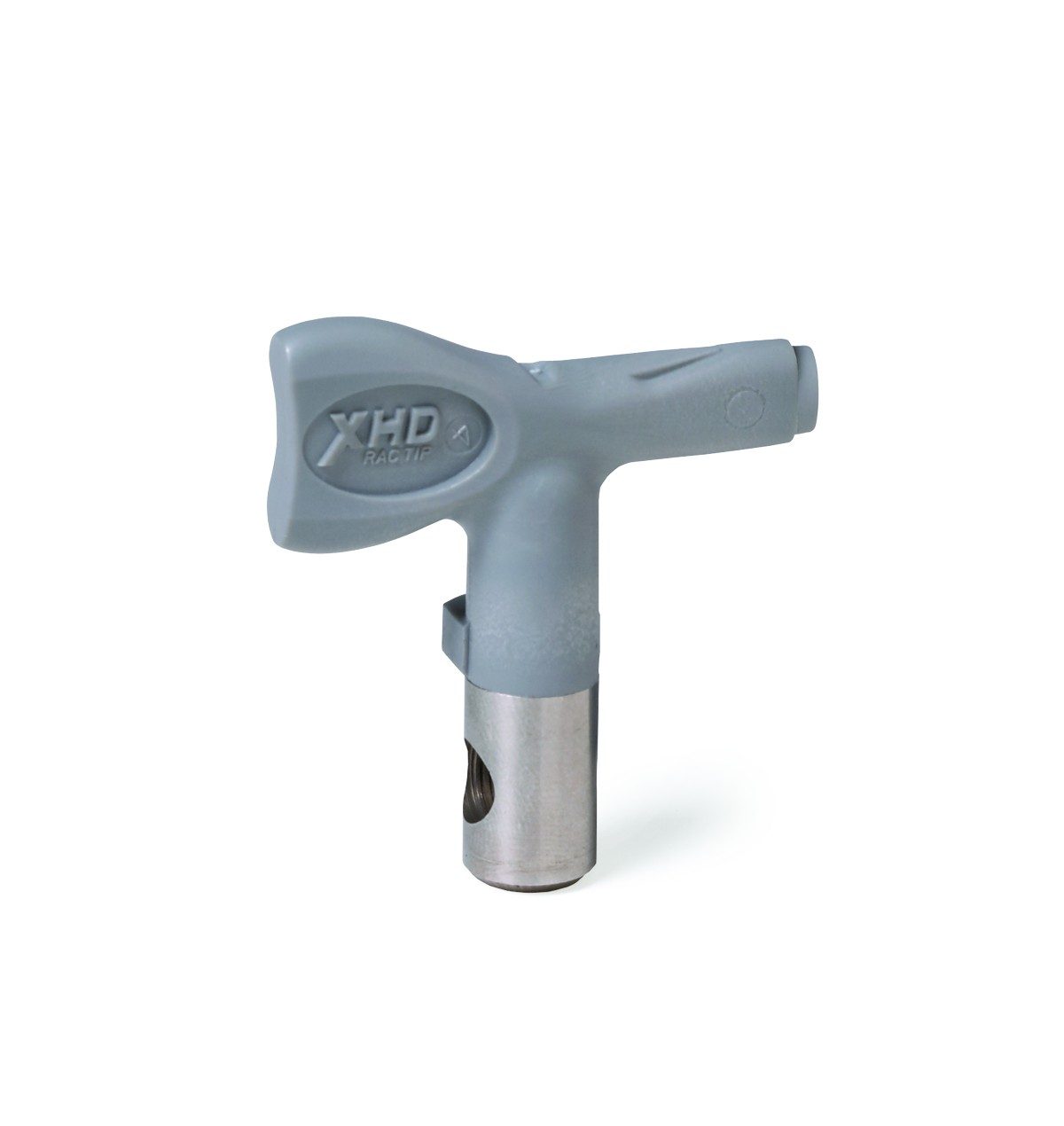

Graco Nozzles XHD RAC Switch Tips

$0.00

Saves time – no screwdriver required

– Change tip sizes in seconds
– For heavy-duty applications up to 7250 psi (500 bar)
– Recommended for use with Xtreme Sprayers and XTR Guns
– Heavy-duty carbide tip

See below for the different sizes. Please note: the measurements are in inches.

Click here for:
MANUAL

5 in stock

SKU: Graco-Nozzle- Category: Tags: ,

Description

XTR5 and XTR7 Airless Spray Gun
U.S.
Metric
Maximum working pressure:
35 MPa, 345 bar
XTR 7 7250 psi
50 MPa, 500 bar
Fluid orifice
2.3 mm
Fluid inlet
1/4 npsm (m)
Max. fluid temperature
71°C
Sound pressure
84.3 dB(A)*
Sound power
95.7 dB(A)*
Wetted parts
aluminum, stainless steel, acetal, polyethylene, nylon, polypropylene, carbide, polyurethane, solvent-resistant o-rings.
*Results are maximum readings taken at 6000 psi (41 MPa, 414 bar), with HD519 tip, using water. Sound power level was tested to ISO 9614-2.

ORIFICE SIZE – INCHES

Inches Millimetres .007 .009 .011 .013 .015 .017 .019 .021 .023 .025 .027 .029 .031 .033 .035 .037 .039 .041 .043 .045 .047 .049
2-4 (51-102) 107 109 111 113 115 117 119 121 139
4-6 (102-152) 209 211 213 215 217 219 221 225 227 229 231 235 239
6-8 (152-203) 307 309 311 313 315 317 319 321 323 325 327 329 331 333 335 337 339 341 343 345 347
8-10 (203-254) 409 411 413 415 417 419 421 423 425 427 429 431 433 435 437 439 441 443 445 447 449
10-12 (254-305) 509 511 513 515 517 519 521 523 525 527 529 531 533 535 537 539 541 543 545 547 549
12-14 (305-356) 609 611 613 615 617 619 621 623 625 627 629 631 633 635 637 639 641 643 645 647 649
14-16 (356-406) 711 713 715 717 719 721 723 725 727 729 731 733 735 737 739 741 743 747 749
16-18 (406-457) 813 815 817 819 821 823 825 827 829 831 833 835 837 839 841 843 847
18-20 (457-508) 923 927 931 933 935 937 939
FlowRate(gpm) .05 .09 .12 .18 .24 .31 .38 .47 .57 .67 .74 .90 1.03 1.17 1.31 1.47 1.63 1.8 1.98 2.17 2.37 2.58
FlowRate(lpm) .20 .33 .49 .69 .91 1.17 1.47 1.79 2.15 2.54 2.96 3.42 3.90 4.42 4.98 5.56 6.18 6.83 7.51 8.23 8.98 9.76
