Stable powder delivery, easy-to-clean internal design and low maintenance costs are the main benefits of the OptiFlow powder injector.
Uniform powder transport

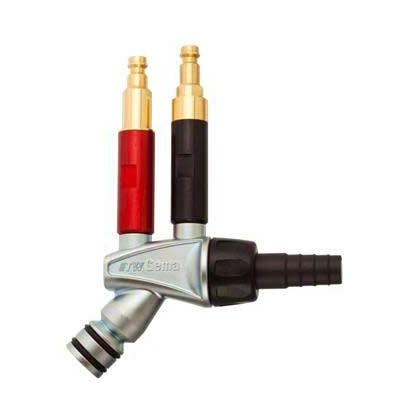

OptiFlow Powder injector (type IG06)
OptiFlow IG06 Powder injector – complete (pos. 1-13) 1007 780
A Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and 12) 1005 589
B Supplementary air check valve unit (black marking) – complete (incl. pos. 7, 8, 9 and
13)
1005 590
C Injector body – complete (incl. pos. 1, 2, 10 and 11) 1006 530
1 Injector body (without pos. 2) 1006 484
2 O-ring – Ø 16×2 mm 1007 794#
3 Insert sleeve – PTFE, complete 1006 485#
4 Hose connection – Ø 10-12 mm, complete (incl. pos 4.1) 1006 531
4.1 O-ring – Ø 16×1.5 mm 205 141#
5 Threaded sleeve 1006 483
6 Connector (conveying air) – NW 5.5 1004 366
7 Connector (supplementary air) – NW 5.5 1004 367
8 O-ring – Ø 11×1.5 mm 1000 532#
9 Filter element – Ø 9/4×27 mm 1003 698#
10 Nozzle 1006 488
11 Nozzle fixation – complete (incl. pos. 11.1) 1007 792
11.1 O-ring – Ø 8×1 mm 1007 793#
12 Body (red) 1004 369
13 Body (black) 1004 370
16 Conveying air hose – Ø 8/6 mm (red) 103 500*
17 Supplementary air hose – Ø 8/6 mm (black) 103 756*
18 Quick release coupling for conveying air hose – NW5-Ø 8 mm 261 645
19 Quick release coupling for supplementary air hose – NW5-Ø 8 mm 261 637
