Description

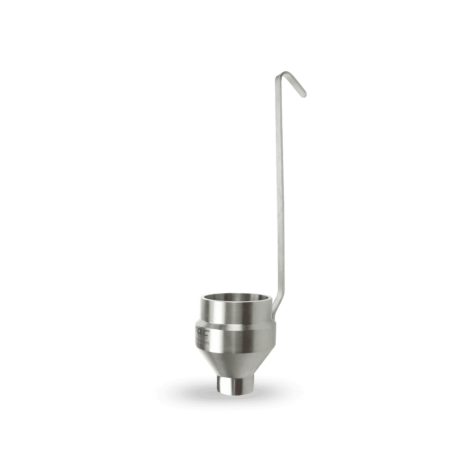

The TQC Viscosity Cup DIN 53211 Immersion is a range of titanium anodized aluminum or stainless steel viscosity cups with fixed stainless steel nozzle (inner cavity) and handle. Inner dimensions similar to DIN 53211. Ideal for measuring coatings and other fluids during application or production.
The dimensions of this flow cup are according to DIN 53211, fitted with a handle, and also referred to as a FRIKMAR cup.
Sheen Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 2 mm
Click here for:
DATASHEET
PRODUCT COMPARISON
VF2071
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TA made of titanium anodised aluminum, with fixed nozzle orifice Ø 2 mm
VF2072
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TA made of titanium anodised aluminum, with fixed nozzle orifice Ø 3 mm
VF2073
TQC Viscosity Cup DIN 53211 Immersion
Type: TA made of titanium anodised aluminum, with fixed nozzle orifice Ø 4 mm
Optional: possible to certify by calibration with certified oils
VF2074
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TA made of titanium anodised aluminum, with fixed nozzle orifice Ø 5 mm
VF2075
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TA made of titanium anodised aluminum, with fixed nozzle orifice Ø 6 mm
VF2077
TQC Viscosity Cup Immersion (Similar to DIN 53211) Type: TA made of titanium anodised aluminum, with fixed nozzle, orifice Ø 8 mm
VF2213
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TAR made of stainless steel, with fixed nozzle orifice Ø 2 mm
VF2215
TQC Viscosity Cup DIN 53211 Immersion
Type: TAR made of stainless steel, with fixed nozzle orifice Ø 4 mm
Optional: possible to certify by calibration with certified oils
VF2216
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TAR made of stainless steel, with fixed nozzle orifice Ø 5 mm
VF2217
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TAR made of stainless steel, with fixed nozzle orifice Ø 6 mm
VF2219
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: TAR made of stainless steel, with fixed nozzle orifice Ø 8 mm
