SURFACE PROFILE AND COATING THICKNESS GAUGE
The TQC Surface Profile & Coating Thickness gauge is a combination gauge. that can be equipped with two different tips, one for surface roughness and another for coating thickness.

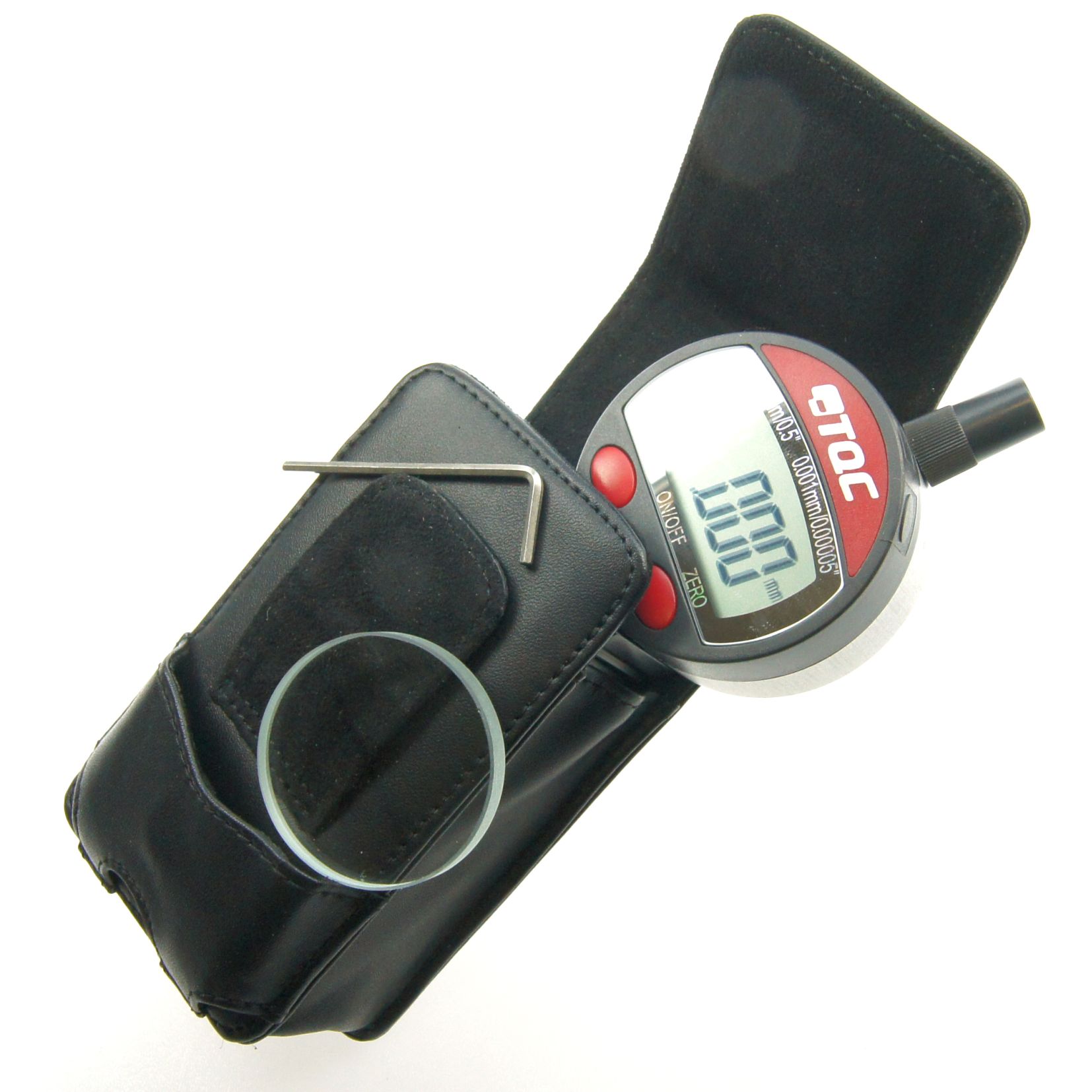

Supplied with a sharp tungsten carbide replaceable tip for surface profile measurement, a hardened round tip for coating thickness measurement, a glass plate for zero calibration and a leather carry pouch that fits all items.
The TQC surface profile roughness gauge is a simple instrument for ultrafast measuring of the point peak-to-valley height of a surface. The shape of the base makes this instrument ideal to measure the height of welds.
Item No: CSTSP1560
Complies with: ISO 2808, ASTM D4417-B, JIS K 5600-1-7, BS EN ISO 2808, BS 3900-C5, IMO MSC.215(82)
Range: 0~3,4 mm / 0~0.13 inch
Resolution: 1µm / 0.04 mil
Accuracy: ± 5µm / 0.2 mil Thread : M2.5 x 0,45
Holder dia. : 20 mm / 0.79 inch
Battery : Type LR44 1.5 V
Optional: Calibration certificate
