Description

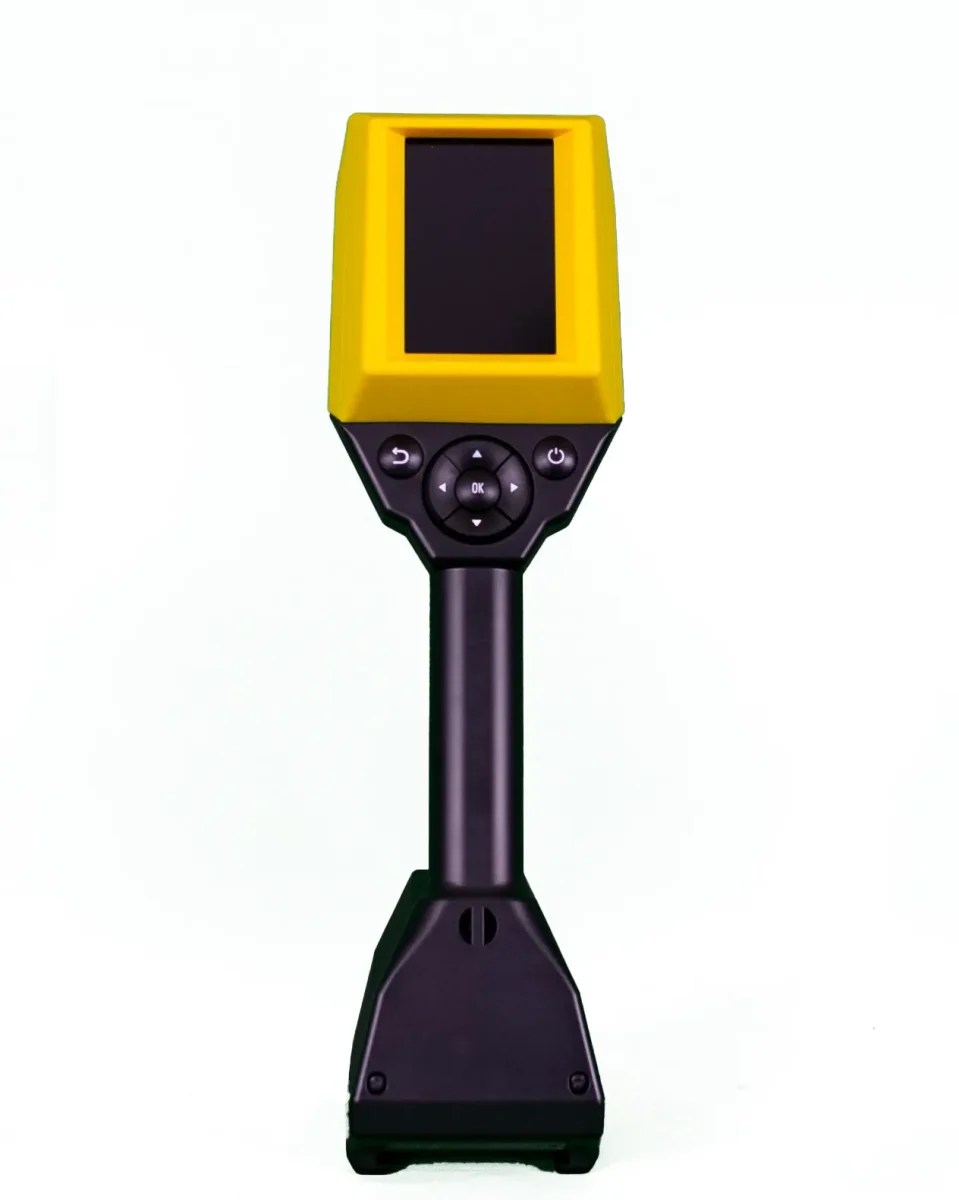

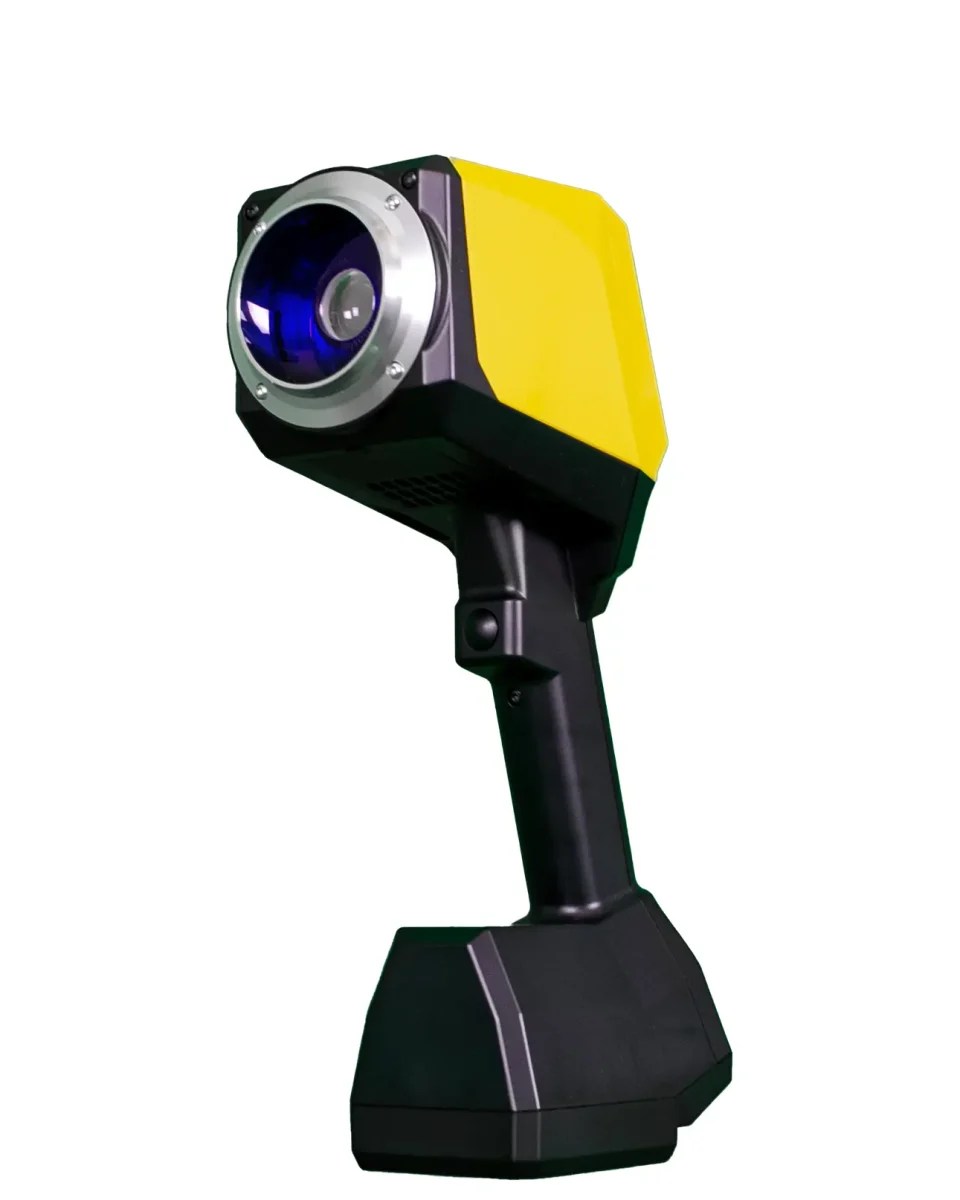

The TQC Sheen CoatMaster Flex is an advanced coating thickness measurement system designed to deliver fast, accurate and non-destructive film thickness results for wet and dry coatings. Its modular and flexible design allows users to configure the system with multiple sensor heads and measurement modules, making it suitable for diverse materials and applications across coatings laboratories, quality control departments and industrial production environments.
With intuitive software and automated measurement routines, the CoatMaster Flex simplifies the inspection of film build on metal, plastics, composites and other substrates. Whether used for batch control, production monitoring or formulation evaluation, this system provides reliable, repeatable data that supports product quality and specification compliance.
⸻
Key Features & Benefits
- Non-destructive film thickness measurement
- Supports wet and dry coatings on various substrates
- High repeatability and accuracy for quality control applications
- Large measuring distance tolerance (2-15 cm)
- Large tilt tolerance (70°) (Depending on coating and substrate material)
- Suitable for thicker layer thicknesses
- Suitable for measuring moving parts
⸻
Technical Specifications
| Cured powder / dried paints | 1 – 1000 μm |
| Wet paints before drying | 1 – 400 μm |
| Powder coatings before curing | 1 – 400 μm |
| Measuring time | from 20 ms |
| Distance tolerance* | 2 – 15 cm |
| Tilt tolerance | 1 ± 70° |
| Measurement on moving parts | yes |
| Relative standard deviation** | < 1 % |
| Measures coatings of any color (incl. white) | yes |
| Real-time data access via ERP and browser | yes |
| Weight (without battery) | 1.3 kg |
| Dimensions | 374 x 91 x 203 mm |
* Depending on coating and substrate material
** 60 μm powder coating before curing on aluminium, 5 cm working distance
⸻
Scope of Supply
- CoatMaster Flex base unit
- Rechargeable battery 18V (2x)
- Battery charger
- Transport Case
- User manual
⸻
Manufacturing and Standards
The CoatMaster Flex is manufactured by TQC Sheen, part of Industrial Physics, and engineered for reliable and repeatable film thickness measurement in coatings and surface treatment workflows. Its modular design supports established quality control practices and helps ensure compliance with internal specifications and testing protocols used in industrial and laboratory environments.
⸻
